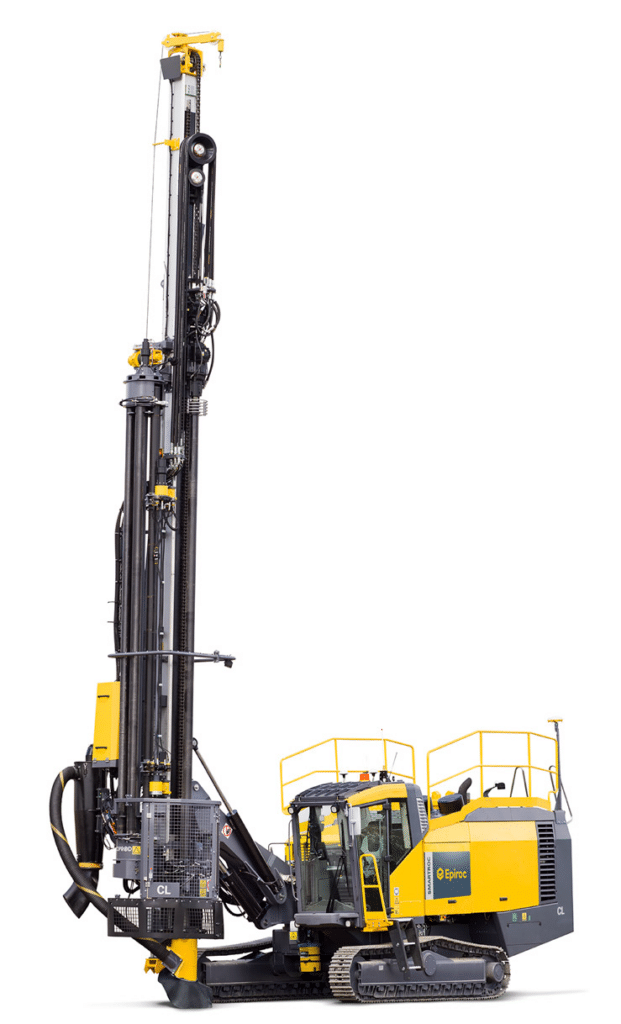

The fuel-efficient SmartROC CL is one of the most powerful and versatile surface drill rigs we’ve ever built. Equipped with the hard-wearing COP 5060 CR, your SmartROC CL will perform – whatever the conditions.
The SmartROC CL is designed to give you exactly what you want in a drill rig – higher productivity and profitability. Equipped with advanced COPROD technology for optimal performance, this smart rig is at the head of its class. A higher penetration rate and a lower fuel consumption combine to provide extraordinary performance. Drill efficiently through any type of rock with a 50% increased penetration rate and more than 45% less fuel consumption compared to traditional DTH drilling.
- Super-efficient COPROD drill rig that boosts drilling productivity
- Exceptionally low total cost of ownership thanks to high penetration rate and low fuel consumption
- Smart high efficiency thanks to auto drill cycle, Hole Navigation System and BenchREMOTE
| Main application area | Mining |
| Drilling method | COPROD |
| Hole diameter | 115 mm – 216 mm |
| Product family | SmartROC |
| Cabin | Yes |
| Rock drill/ DTH hammer size | COP 5060 CR |
| Rotary head | DHR6 H 45 ; DHR6 H 56 ; DHR6 H 68 ; DHR6 H 78 |
| Maximum hole depth | 42,5 m |
| Engine | 328 kW |
| Air capacity (FAD) | 245 l/s |
| Note | Product variations apply. See brochure for more information |
